Application Of Cyclodial Reducer In Healthcare Industry


Working conditions:

200kg load


Products:

J1: RV-200C   J2: RV-100C   J3: RV-80E


Attention:

The coaxiality and flatness of the mating flange are 0.01, the runout of the high-speed shaft is within 0.05, and that of the low-speed shaft is generally within 0.1. The torque is not large, but the bending moment is large, so the bending moment needs to be checked.



Advantage:

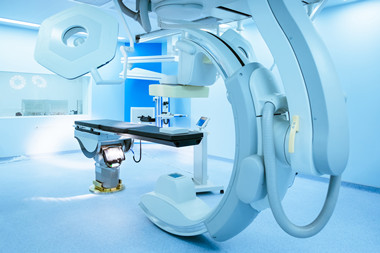

Medical-surgical C-arm is mainly used in clinical medical detection, and the load is within 200kg. However, due to the long cantilever, the selection is larger than that of an ordinary positioner, mainly because of the large bending moment caused by the cantilever.

In addition, because patients need to get on and off the equipment, so the equipment height is limited. Therefore the reducer of the base requires a flat design, the motor, and the reducer need to be at right angles, and the motor is hidden in the side of the reducer, which can effectively control the height.
