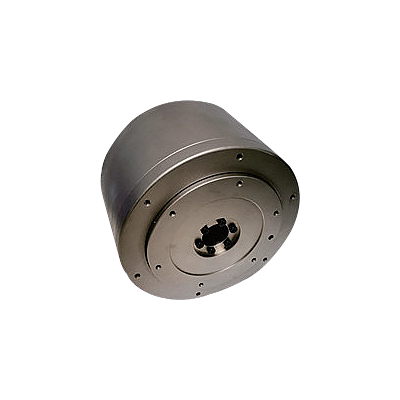

Direct Drive Motor DMFE80-003RE

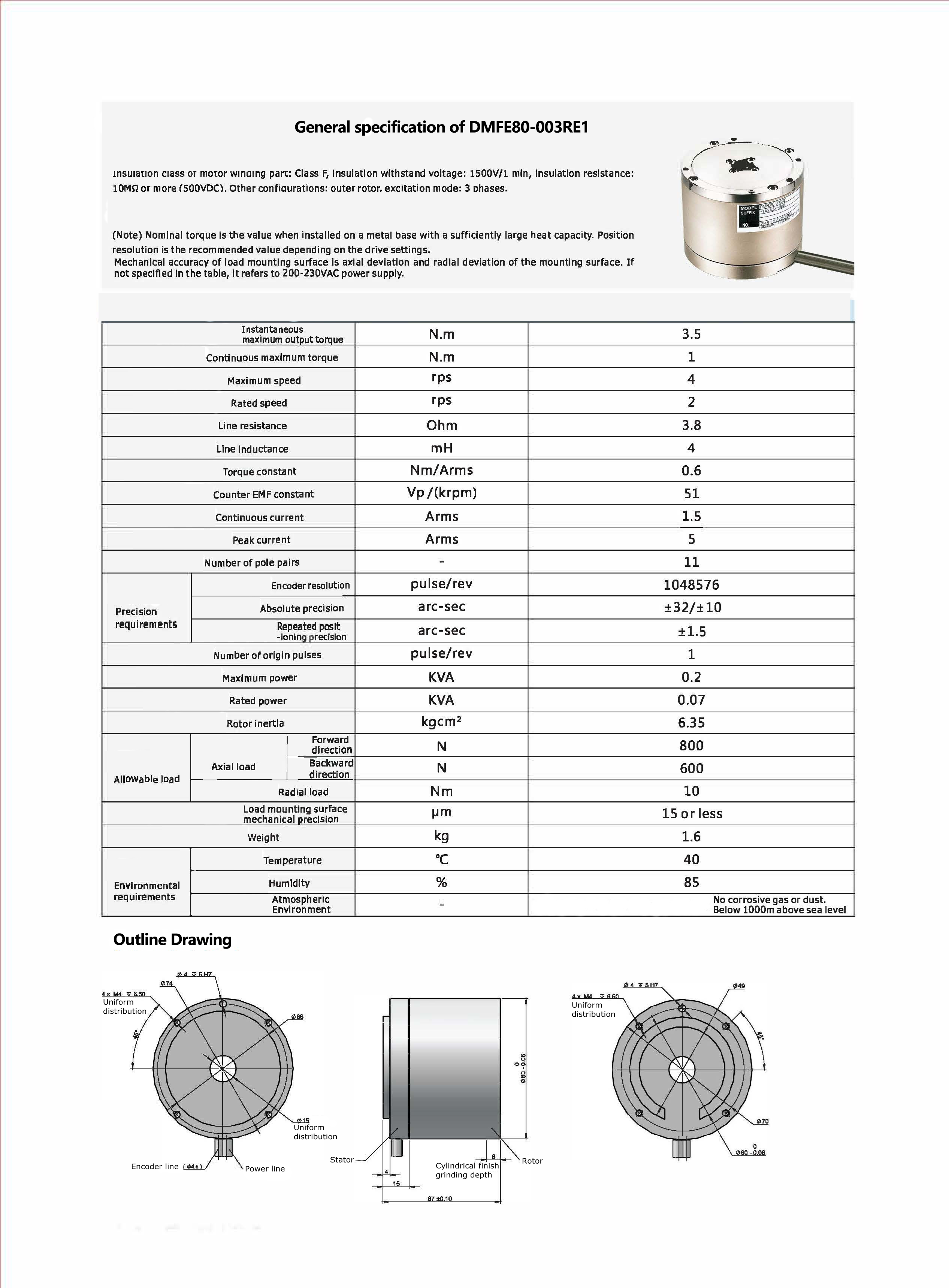

Insulation class: Class F Insulation withstand voltage: 1500V for 1 minute Insulation resistance: above 10m Ω (500VDC) Other structures: outer rotor type Excitation mode: 3-phase Power supply: 200-230vac Others: the nominal torque is the value when installed on the metal base with sufficient heat capacity. The position resolution is the recommended value, which is set according to the driver. The mechanical accuracy of load mounting surface is the axial deviation and radial deviation of the mounting surface.
