Strain Wave Drive LHD

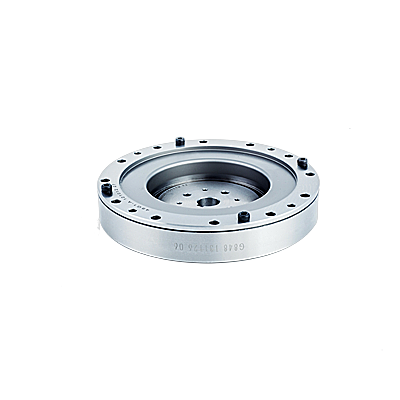

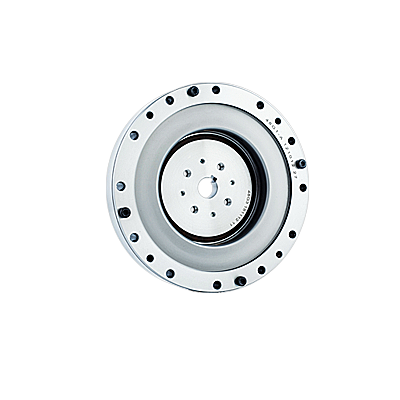

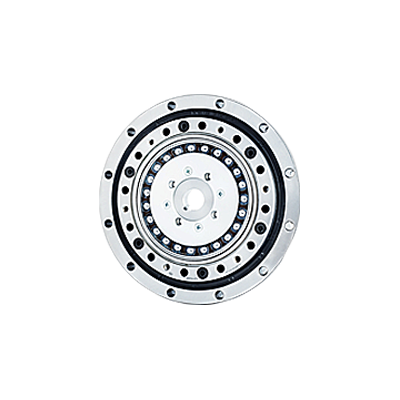

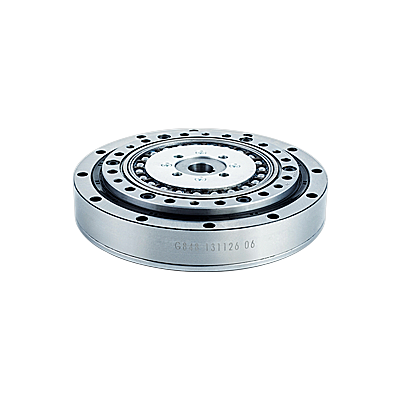

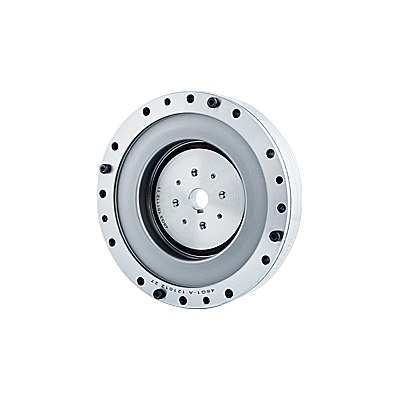

The flexspline of the LHD ultra-flat hollow-shaft flexspline strain wave gear has an ultra-thin hollow flanged shape. The design of the whole component set has been developed to reach the limits of flatness while maintaining harmonic speed reduction effectivity. The LHD is perfect for use in tight spaces such as power line connections, and it is very suitable for application in any scenario where the gear has thickness and bearing requirements. The hollow shaft can be used for threading wiring through the gear. The LHD ultra-flat hollow-shaft flexspline strain wave gear has an ultra-flat structure, thin profile, and low weight. In operation, it maintains high rigidity, ultra-low backlash, and a substantial load-bearing capacity.
