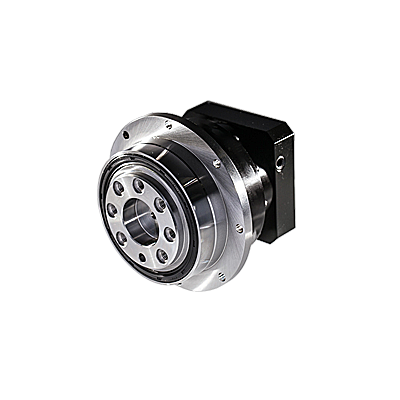

Planetary Reducer ND

Working conditions:

Load ≤ 400kg, output speed about 150r / min, clearance movement

Attention:

1. When installing coupling, pulley, sprocket, and other connecting parts on the output shaft of the planetary reducer, it is not allowed to use the direct hammering method. Because the output shaft structure of the planetary reducer can not bear axial hammering, screw in the screw hole at the shaft end and press the connecting parts.

2. Before use, the plug at the highest position should be replaced with the exhaust plug to ensure that the gas in the body is discharged when the reducer is running. If it is not replaced in time, the planetary reducer will run for a long time, which will cause the gas in the reducer to expand the oil seal and cause oil leakage.

3. Special attention should be paid to the first oil change. The lubricating oil of the planetary reducer should be changed in time after the first 300-400 hours of operation, and then every 1500-2000 hours.

Advantages:

1. The use of a planetary servo reducer can effectively maintain the long-term operation of the motor, and support the motor to accept greater torque in operation while avoiding motor damage due to overload.

2. Planetary reducer can save the use cost to the greatest extent.

3. The use of a helical planetary reducer can effectively reduce the moment of inertia.

4. Planetary reducer can effectively solve the energy consumption of enterprises. 5. The use of a reducer can effectively reduce the motor speed and increase torque.

6. Compared with other reducers, the Desboer brand precision planetary reducer has the characteristics of high stiffness, high precision (single-stage can achieve less than 1 arcmin, high transmission efficiency (the single stage is 97% - 98%), high torque/volume ratio, lifelong maintenance-free, etc.

Future trend:

1. At present, the applications of AGV robots in China are mainly concentrated in the fields of manufacturing, logistics transportation, and inspection. The automotive industry, home appliance manufacturing, and other fields are the main demand markets of AGV in China. The demand for AGV in the two industries is stable, but the demand for intelligent automation of products is higher and higher.

2. From the perspective of the AGV development trend, the AGV industry is very worthy of investment, and the development potential of AGV is also huge. On the one hand, with the increasingly rich AGV products, AGV will be more combined with the Internet and big data technology, so that the perception ability and independent decision-making ability of the logistics system can be improved, and the degree of intelligence is significantly improved. On the other hand, with the development of the AGV industry, the increasing demand, mature technology, and low cost of AGV will further expand the application scope of AGV.
