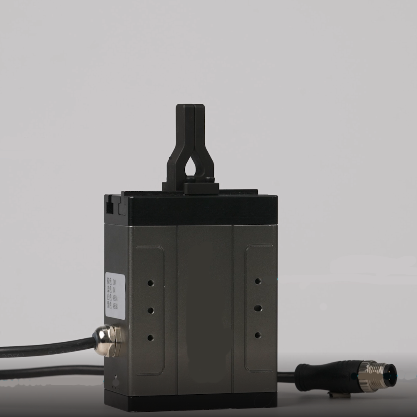

Electric Gripper EPG

Working condition:

The lithium battery is clamped by the electric gripper and rotated or moved to the specified position.

Attention:

1. Lithium battery requires controllable clamping force to prevent battery explosion.

2. There are two working environments: dry and corrosive (electrolyte hydrofluoric acid). Attention should be paid to the corrosion of the product itself, oil volatilization, accelerated aging of the line, and so on.

3. Copper, zinc, and nickel are prohibited on the surface of the product.

Advantage:

The customer used pneumatic gripper before, such as collision detection, drop detection, clamping detection, power failure self-locking, and other functions are realized by adding many sensors. Compared with the electric grippers provided by our company, the advantages are as follows:

1. Simple structure and high integration;

2. The assembly time is greatly shortened and the manual assembly cost is reduced;

3. The electric gripper is easy to debug, one wire is plug and play, and the operation is easy to use;

4. Strong adaptability. It can be suitable for different shapes and loads by changing the gripper head;

5. It can network and synchronously control multiple electric claws, with adjustable stroke and force control, with collision detection, drop detection, clamping detection, and power failure self-locking;

Future trend:

New energy, such as lithium battery has developed rapidly in recent years. The trend and popularization of the new energy market have driven many equipment manufacturers' development. In the 3C new energy industry, the popularity of pneumatic grippers is very high, but most manufacturers do not have a deep understanding and trust in electric grippers. At present, the market penetration is very low. If we can solve the customer pain points, improve the cost performance and replace some of the applications of pneumatic grippers, the sales volume will also be very considerable.
