Cycloidal Gearbox RV-E

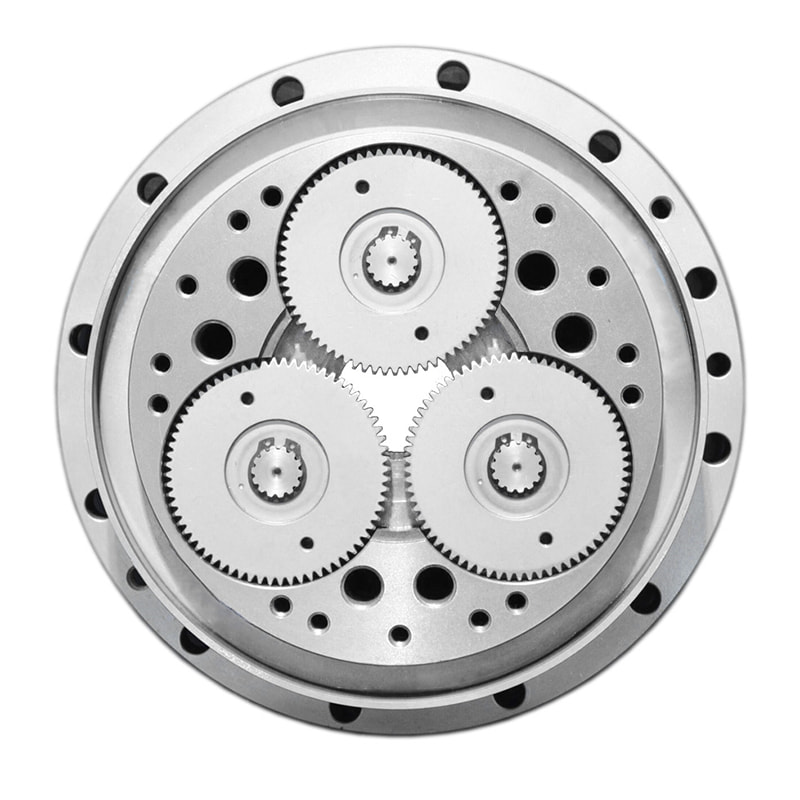

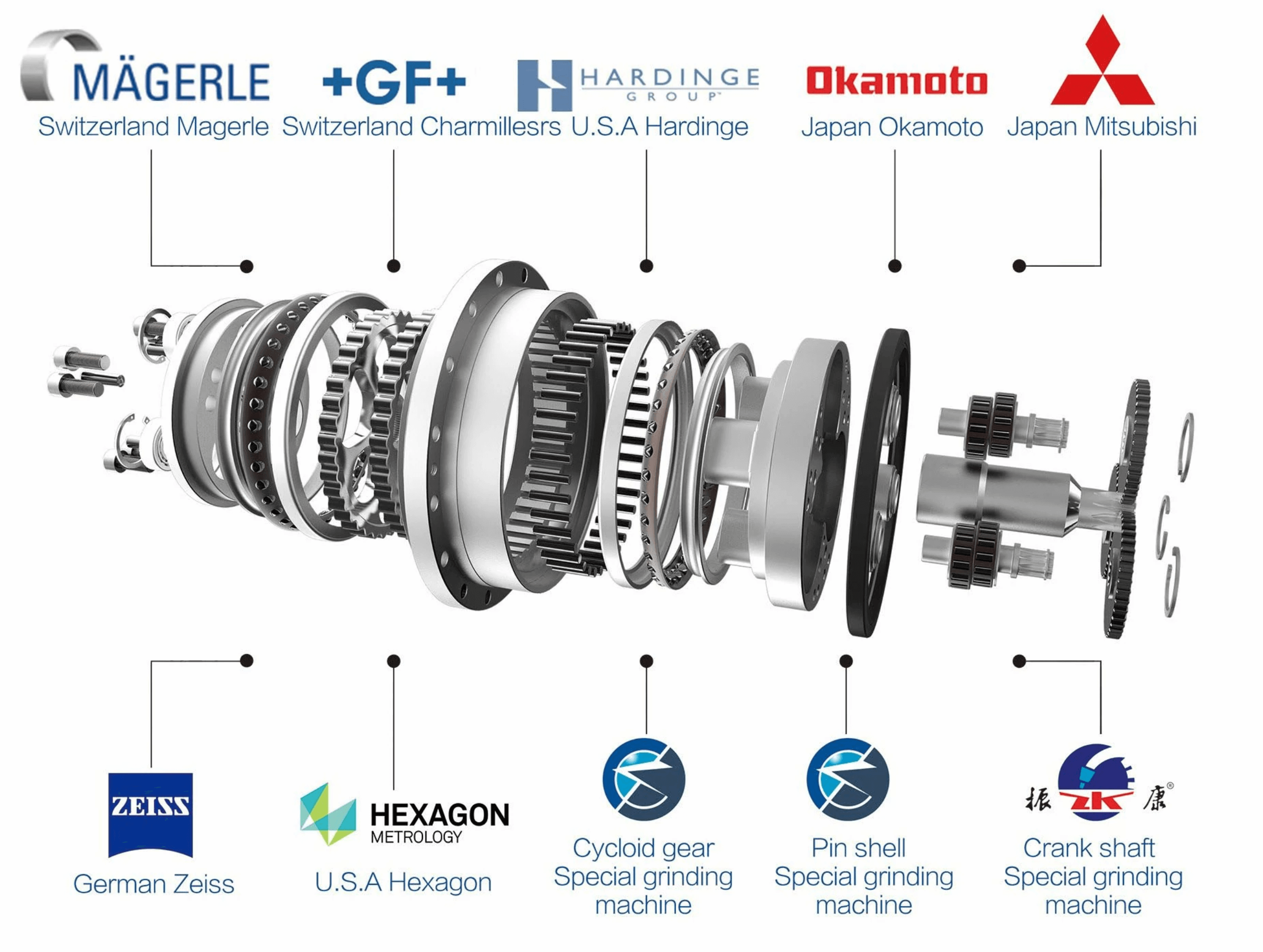

Cycloid Reducer E Series is a two-stage gear reducer that consists of the 1st stage of planetary gear reducer and the 2nd stage of cycloidal pin-wheel reducer. The first speed reduction is achieved by the meshing between the input shaft gear and the planetary gear based on the gear reduction ratio. The planet gear is connected to the crankshaft, and the rotation of crankshaft causes the eccentric rotation of the cycloid disc. This achieves the second speed reduction and thus if the crankshaft rotates 360°, the cycloid disc will rotate one tooth in the opposite direction.

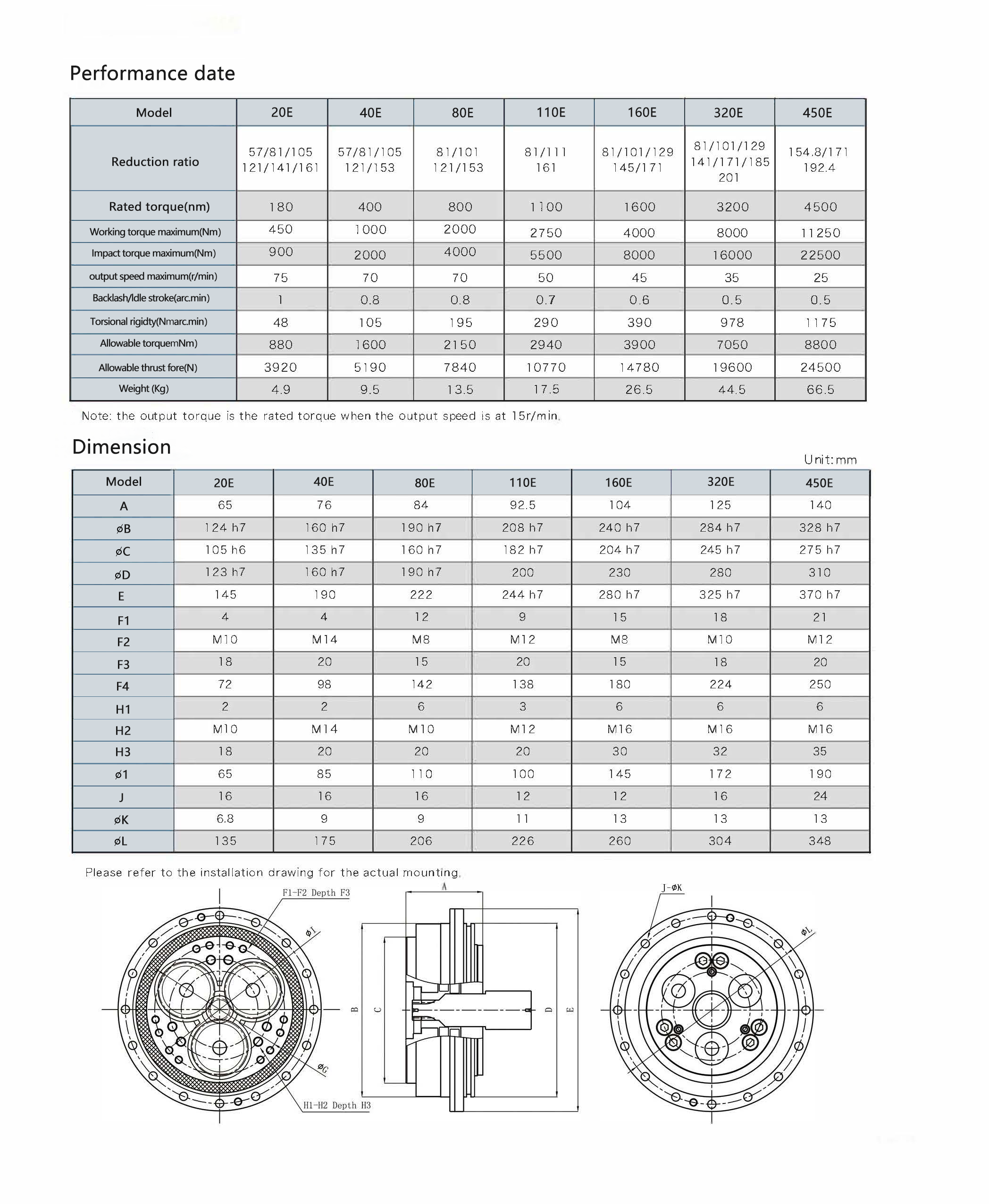

截屏2024-07-23 09.22.48.png


RV Reducer + Slewing Bearing Structure.png

Working conditions:

The H-type positioner has one rotating axis and two turning axes to cooperate with two robots for welding. The total weight of the worktable is 4.5T.

Attention:

The actual working conditions should not exceed the design conditions, and the design should pay attention to lubrication, sealing, etc.

Advantage:

Compared with RV Reducer, WEISS turntable has the advantages of short delivery time, easy installation, and use. RV Reducer has higher accuracy and lower cost.

Future trend:

With the increasing complexity of welding parts, the demand for multi-axis positioners is also increasing.
