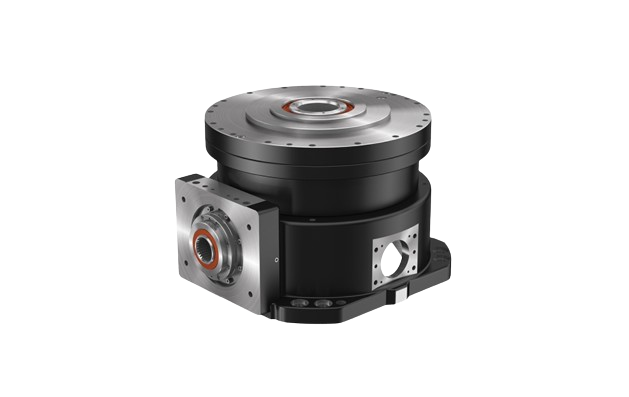

RS-A/B Series Precision Reduction Gear

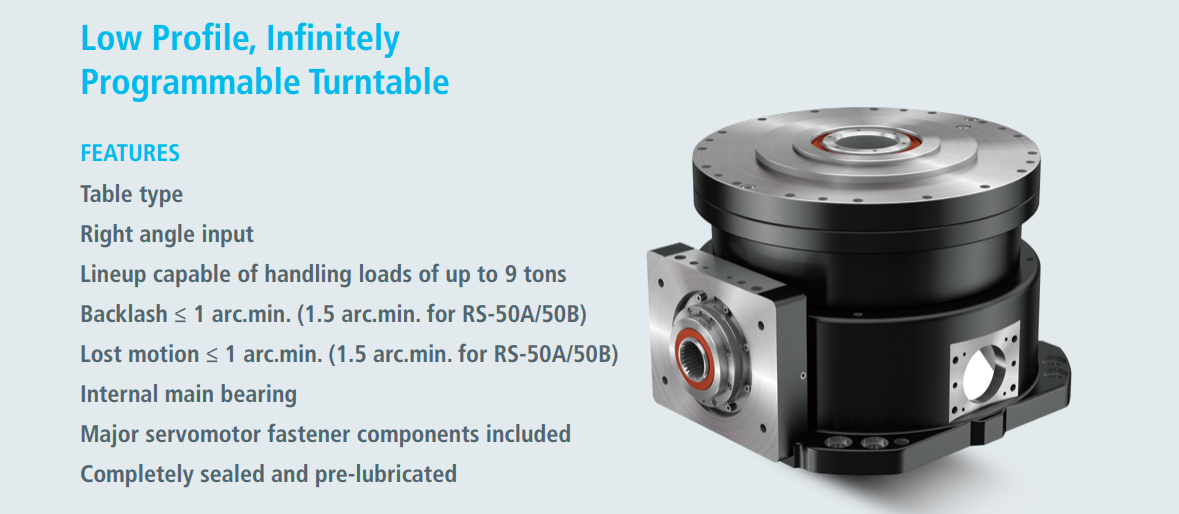

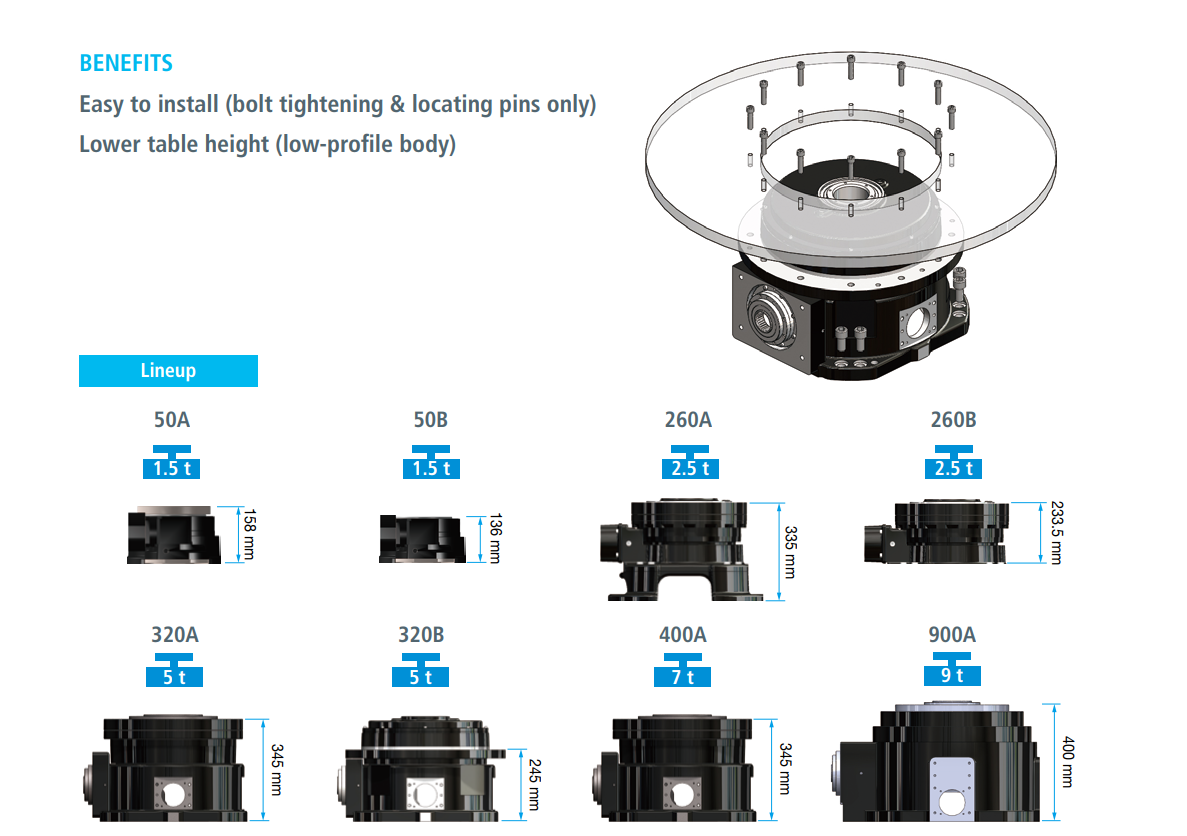

This RV reducer can be freely combined with various positioners, turntables, and indexing tables Easy to install (bolt tightening & locating pins only) Lower table height (low-profile body) Table type Right angle input Lineup capable of handling loads of up to 9 tons Backlash ≤ 1 arc.min. (1.5 arc.min. for RS-50A/50B) Lost motion ≤ 1 arc.min. (1.5 arc.min. for RS-50A/50B) Internal main bearing Major servomotor fastener components included Completely sealed and pre-lubricated
