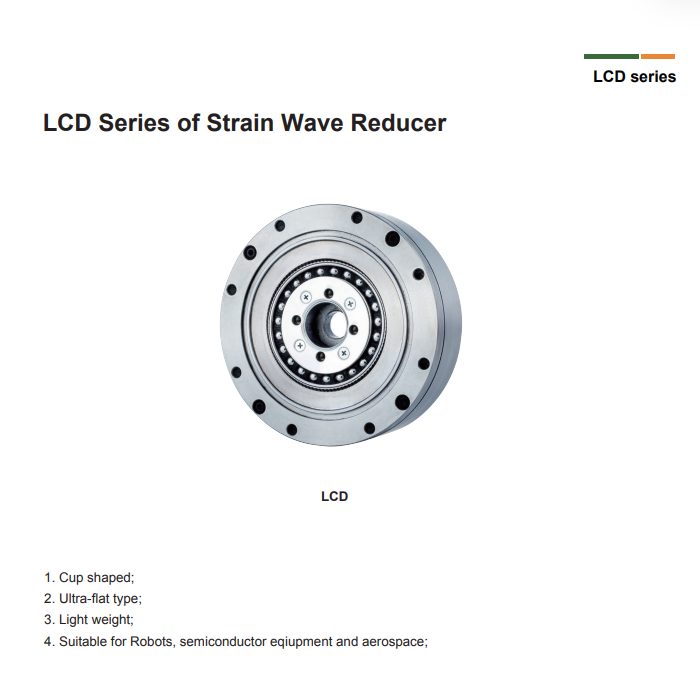

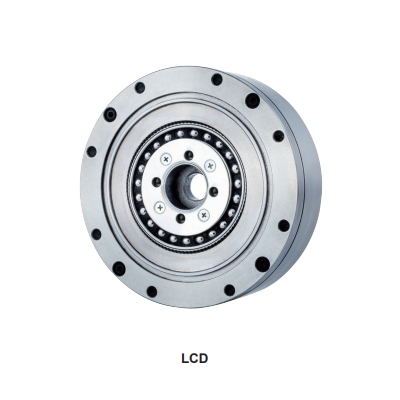

LCD Series of Strain Wave Reducer

1. Cup shaped; 2. Ultra-flat type; 3. Light weight; 4. Suitable for Robots, semiconductor eqiupment and aerospace; The flexspline of the harmonic reducer LCD series (complete model) series has a thin-walled cup-shaped structure. The whole machine design adopts ultra-flat (ultra-thin) structure, small size and light weight. Built-in ultra-high precision and high rigidity crossed roller bearings can directly bear external loads. This series is very suitable for use in joint robot terminals, humanoid robots, aerospace, 3C automation equipment and other fields.

The whole machine adopts an ultra-flat structure, which is very suitable for use in robot end joints where a harmonic speed-reducing effect is required.
The LCD ultra-flat cup-shaped flexspline strain wave gear has an ultra-flat lightweight structure, small size, high rigidity, and low backlash.

Applications:

The LCD ultra-flat cup-shaped flexspline strain wave gear can be widely used in: robots, humanoid robots, printed circuit manufacturing equipment, metal machine tools, and other fields.

Models:

The LCD ultra-flat cup-shaped flexspline strain wave gear models are based on the connection form of the input terminal and the wave generator cam. Currently, there is only the LCD-I series:
LCD-I: The input shaft is directly matched and connected with the inner hole of the wave generator.
